Master weld purge with our easy guide! Boost weld quality, save costs, and avoid oxidation using expert tips and step-by-step methods.
Weld purging is the process of removing oxygen, water vapor, and other gases from around a weld joint using inert gas to prevent oxidation and contamination during welding. Without proper purging, welds can develop serious quality issues.
Here's what you need to know about weld purging:
Weld purging is especially critical when working with reactive metals. When these materials are exposed to oxygen at high temperatures, they oxidize rapidly, resulting in discoloration, reduced corrosion resistance, and potentially weakened welds. This oxidation (sometimes called "sugaring" when it appears on stainless steel) can completely undermine the performance of your finished product.
"When welding stainless steel, titanium or other corrosion resistant materials, the perfect environment for welding is paramount to maintaining the corrosion resistant properties," notes the American Welding Society.
I'm William "Stick" Mank, a second-generation welder with over 20 years of experience in the oil and gas industry, and I've seen how proper weld purging techniques can make or break a critical joint. At Tentacle Tools, we design our purging equipment based on real-world challenges I've faced in the field.
Explore more about weld purge:- purge kits- weld fixture
Let me tell you something I've learned after thousands of welds – weld purging isn't just some fancy extra step. It's as essential to quality welding as having a steady hand and good vision.
Think of it this way: when metals like stainless steel, titanium, and those fancy nickel alloys get hot during welding, they start acting like they're desperate for a date with oxygen. And trust me, that's one relationship you want to prevent. When these metals and oxygen hook up at high temperatures, they create oxide layers that ruin your weld in ways that'll make any inspector shake their head:
Your corrosion resistance goes right out the window – which defeats the whole purpose of using these specialty metals in the first place. Your beautiful weld turns all kinds of wrong colors, from light straw to dark blue (what old-timers like me call "sugaring" on stainless). Worse yet, the weld becomes brittle, develops tiny holes, and loses the strength you're counting on.
In our industry, we've got standards for a reason. For weld purging, we generally need oxygen levels below 500 parts per million (ppm), but let's be honest – that's just the bare minimum. For quality work, you'll want to aim much lower:
For stainless steel, keep it under 100 ppm. Titanium? Better get below 50 ppm. And if you're working with zirconium, you need to hit less than 20 ppm. Those aren't arbitrary numbers – they're the difference between a weld that lasts decades and one that fails inspection.
Skip proper weld purging and you might as well start writing apology letters now. I've seen entire pipeline sections torn out and replaced because someone thought they could cut corners on purging. That's hundreds of thousands of dollars and weeks of delays – all avoidable. In food processing or pharmaceutical work, poor purging can mean contamination risks that nobody wants to be responsible for.
I remember when we used to guess if a purge was good enough. Those days are long gone, thankfully. Today's weld purging relies on precise monitoring equipment that tells you exactly what's happening inside your purge area.

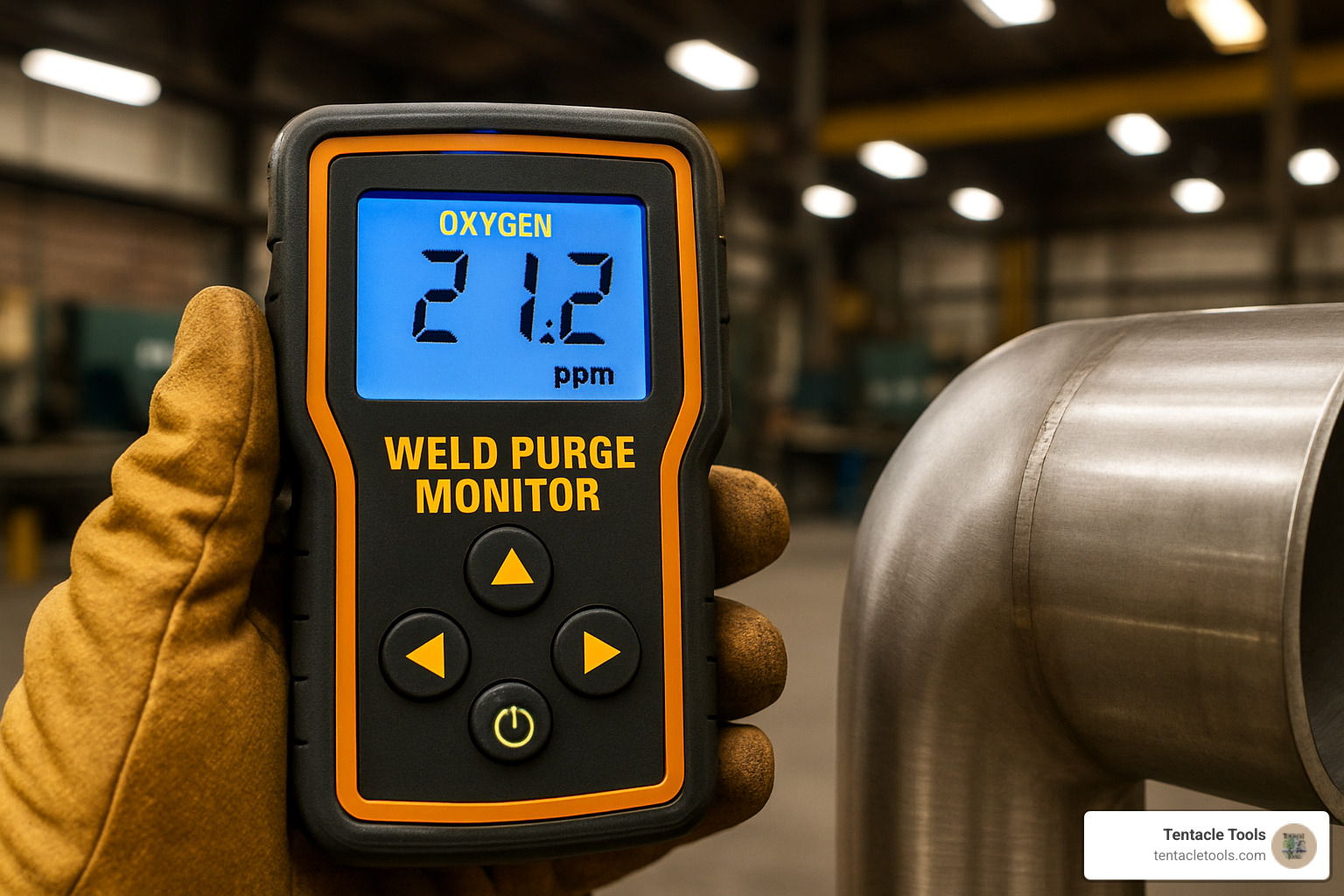

A good weld purge monitor uses oxygen sensors that can detect levels down to just 1 part per million. This isn't just nice to have – it's necessary because you absolutely cannot tell by looking whether your oxygen levels are low enough. I don't care how good your eyes are; oxygen is invisible at these concentrations.
When I'm selecting a purge monitor for my crew, I look for several key features: accuracy down to single-digit ppm readings, quick response time so we're not standing around waiting, data logging capabilities to prove to clients our work was done right, and clear alerts that tell my welders when it's safe to strike an arc. Good battery life matters too – nothing worse than a monitor dying halfway through a critical joint.
At Tentacle Tools, we've built our monitors based on real-world needs – with both visual and audio alarms that eliminate guesswork. Scientific research on weld purging confirms what I've seen in the field: even tiny amounts of oxygen can cause discoloration in sensitive metals, sometimes at levels below 50 ppm.
I always tell my apprentices: "You can't manage what you don't measure." One quality purge monitor will pay for itself the first time it prevents a failed weld. That's not just good welding – that's good business.
Different welding processes need different approaches to weld purging. Let me walk you through what works best for each method, based on decades of field experience.
When you're doing TIG/GTAW welding (which is most common for critical applications), you need both torch shielding and back purging, especially for those all-important root passes. My go-to setup involves inflatable purge dams with carefully controlled gas flow. This approach is perfect for stainless and titanium pipe welding, where you typically need oxygen levels below 100 ppm.
For MIG/GMAW work, I often recommend backing tape when you can't practically purge the entire volume. The higher heat input from MIG means you'll need longer post-purge times to protect the weld as it cools. Adding trailing shields can extend your coverage significantly – well worth the investment.
Laser welding is a whole different animal. These precision joints often happen in vacuum chambers backfilled with inert gas, requiring extremely low oxygen (under 10 ppm). For these applications, specialized micro-purge equipment is the way to go.
Electron beam welding takes things even further – performed in complete vacuum conditions, it doesn't need traditional purge gas but requires highly specialized equipment most shops don't have.
For plasma arc welding, which is similar to TIG but with more concentrated heat, you need robust purge systems that can handle higher temperatures. Water-cooled backing plates with built-in purge channels work wonders here.
No matter which method you're using, trailing shields are a game-changer. They attach to your torch and follow along as you weld, providing that extra protection as the weld cools. Our American-made trailing shields at Tentacle Tools are designed to fit standard torches while maximizing coverage and gas efficiency.
I've seen how the right purge method transforms weld quality. Whether you're running root passes on critical pipeline joints or fabricating sanitary stainless for food processing, proper weld purging techniques make all the difference between a weld that passes inspection first time and one that costs you time, money, and reputation.
Choosing the right purge gas and equipment isn't just about checking boxes—it's about setting yourself up for welding success. As someone who's spent countless hours on job sites, I can tell you that your gas and gear choices make all the difference.
Let's talk gases first. Each has its own personality and job to do:
| Gas | Density vs Air | Advantages | Disadvantages | Best Applications |
|---|---|---|---|---|
| Argon | 1.4× heavier | Most common, good coverage, affordable | Not suitable for all metals, settles at bottom | Stainless steel, carbon steel, aluminum |
| Helium | 0.14× lighter | Excellent heat transfer, rises naturally | More expensive, escapes quickly | Thick materials, high-speed welding |
| Nitrogen | Similar to air | Economical, widely available | Can form nitrides with some metals | Carbon steel, some stainless grades |
Argon is your reliable workhorse for weld purging. Being heavier than air, it naturally pushes oxygen downward—like a weighted blanket for your weld zone. This makes it perfect when you're purging pipes, as you can introduce it at the bottom and let physics do the work. Just make sure you're using 99.995% purity or higher for those critical welds.
Helium might cost more, but it has its sweet spots. Think of it as the sports car of purge gases—faster heat transfer means you can work more efficiently on thick materials. Remember though, helium wants to float up and away, so when using it, flip your approach: feed from the top, vent from the bottom.
Nitrogen is your budget-friendly option that works just fine for many applications. It's like the dependable pickup truck in your garage—not fancy, but gets the job done with carbon steel and many stainless grades. Just keep it away from reactive metals like titanium unless you want to deal with nitride formation issues.
Now for the gear that makes weld purging possible. At Tentacle Tools, we've developed our equipment based on real-world challenges I've faced in the field.
Our inflatable dams and purge plugs create that perfect sealed environment in your pipe. We use high-grade silicone that can handle temperatures up to 320°C because we know things get hot out there in the real world.
When time is money, our purge bags are worth their weight in gold. These pre-formed systems create a sealed environment with minimal gas waste. Need proof? An 8" pipe can be purged to below 0.01% oxygen in under 2 minutes—that's efficiency you can take to the bank.
For those tricky jobs where you can't retrieve your dams after welding, water-soluble film dams are a game-changer. They simply dissolve during hydrostatic testing, leaving no trace behind.
Working with titanium or other highly reactive metals? Our trailing shields attach directly to your torch, extending that protective gas coverage as you work your way down the joint.
Sheet metal welding requires different approaches, which is where backing tape comes in. It concentrates your purge gas right where you need it, cutting down on waste and improving coverage.
For complex components, our purge chambers provide complete coverage whether you're working with flexible or rigid enclosures.
And don't overlook those quick-connect fittings—they maintain consistent flow rates and minimize leakage when you're connecting or disconnecting your setup.
The secret to effective weld purging isn't just about having the right gas—it's about how you use it. Think of gas flow like pouring a perfect beer: too fast and you get nothing but foam; too slow and you're waiting all day.
What you want is laminar (smooth) flow, not turbulence. Turbulent flow is like stirring up a hornet's nest—it actually pulls oxygen back into your purge zone, undermining all your hard work.
For most applications, 5-7 liters per minute hits the sweet spot. Working with tiny pipes under 2 inches? Dial it back to 3-5 L/min. For those big chambers, start with a quick blast at 15-20 L/min to clear things out, then ease back to 5-10 L/min for maintenance.
Directional fill makes a huge difference too. With argon, remember "heavy goes low"—feed from the bottom, vent from the top. Helium? Opposite approach: feed high, vent low. Mixed gases? Follow the lead of whichever gas dominates the mix.
A good diffuser is worth its weight in gold. Our Tentacle Tools diffusers spread gas evenly, preventing that "fire hose" effect that creates turbulence. Position your exhaust ports as far from your inlet as possible to ensure the gas flows across the entire weld zone.
Smart distribution beats brute force every time. A well-designed purge setup can use up to 60% less gas than a thrown-together solution—that's money back in your pocket and less time changing out cylinders.
Before you strike that arc, make sure you've got all your weld purge ducks in a row. I've seen too many welders waste time and gas because they weren't prepared.
Essential Equipment:- [ ] Appropriate purge plugs or dams for your pipe diameter- [ ] Purge gas (argon, helium, or nitrogen) with certified purity- [ ] Pressure regulator with flowmeter- [ ] Oxygen analyzer/weld purge monitor- [ ] Gas hoses and quick-connect fittings- [ ] Diffuser for even gas distribution- [ ] Purge tape for sealing gaps- [ ] Backing tape (for sheet metal applications)- [ ] Leak detection solution (soapy water works in a pinch)
For those challenging jobs, consider our advanced options like dual-seal purge systems, water-soluble film dams for one-way access, or heat-resistant equipment for pre-heated applications. Data-logging monitors are invaluable when you need to prove quality to inspectors.
Before you start purging, take five minutes to check everything over. Inspect those dams and seals for damage, check hoses for cracks, verify your oxygen monitor calibration, and test-inflate your purge dams before they go in the pipe. Also make sure you've got enough gas in the cylinder—nothing worse than running out mid-weld.
At Tentacle Tools, we've taken the guesswork out by creating complete purge kits for specific pipe sizes. These kits are built by welders who understand what it's like to be in your boots—because we've been there too.
Quality purge equipment isn't an expense—it's an investment that pays off in better welds, less rework, and significant gas savings. When your reputation rides on every bead you lay down, don't cut corners on your purge setup.
Let's roll up our sleeves and get into the nitty-gritty of weld purging. I've spent countless hours on pipeline projects perfecting these steps, and I'm excited to share what works in the real world.
Think of preparation like the foundation of a house – skip it, and everything else falls apart. Here's what you need to do:
Clean those surfaces until they shine. I mean really clean them – both inside and outside the weld joint. Use an industrial cleaner that matches your metal type. That greasy film from handling? It's got to go. Any oils or greases will release gases during welding that can ruin your purge atmosphere faster than a pin drop in a quiet room.
Make sure everything is bone dry. Even tiny amounts of moisture can cause hydrogen embrittlement in some alloys – and that's a headache no welder wants to deal with.
Before you move on, take a minute to inspect for any damage. Look for dents, scratches, or defects that might prevent a good seal. And double-check your fit-up – proper alignment now saves cursing later.
Now we're getting to the good stuff. First, calculate your purge volume – this tells you how much gas you'll need and roughly how long purging will take. It's not just guesswork.
Position your purge dams or plugs about 3-6 inches from each side of the weld joint. With our Tentacle Tools dams, you'll get a nice, tight seal that won't let you down mid-weld.
See any small gaps that might leak your precious purge gas? Seal them up with purge tape. Then connect your gas supply to the inlet fitting – double-check those connections are secure. Nobody wants to hear that hissing sound of escaping argon (and dollars).
Position your oxygen sensor near the exhaust port for the most accurate readings. Trust me, I've seen guys try to cut corners here, and it always ends with a weld that looks like it was done in a hurricane.
Start your gas flowing at a moderate rate – about 5-7 liters per minute. Going too fast creates turbulence that actually pulls oxygen back into your purge zone. It's like trying to fill a bathtub with a fire hose – counterproductive.
Watch your purge monitor like a hawk as those oxygen levels drop. Patience pays off here. Wait until you hit your target level – typically below 100 ppm for stainless steel. This isn't the time to rush.
Once you've reached your target, reduce to a minimal flow just to maintain the atmosphere. You'll save gas and still keep that weld protected.
With your purge dialed in, you can start with your tack welds while maintaining that perfect atmosphere. Then move on to your root pass with full purge protection – this is where the magic happens.
For critical applications, maintain purging between passes. Then complete your final passes while keeping an eye on your purge quality. The monitor is your best friend here.
Don't cut the gas as soon as you finish welding! This is a rookie mistake I see all the time. Continue purging until the weld cools below oxidation temperature (typically under 800°F/427°C).
When it's time to stop, reduce flow gradually rather than just shutting it off. Then carefully remove your equipment – those purge dams and plugs need to come out without scratching anything.
Take time to inspect for any signs of oxidation or discoloration. And document your purge parameters – your quality control folks will thank you.
Weld purging isn't just flooding the area with gas – it's a methodical process that rewards attention to detail.
Need to get a pipe purged in a hurry? Here's my streamlined process that we use daily on pipeline projects:
First, calculate your purge volume. For a pipe, the formula is V = πr²h (where h is the length between dams). For example, a 6" pipe with dams 12" apart needs about 339 cubic inches or 5.6 liters of purge volume.
Choose dams that fit your pipe diameter. For pipes 1-12", our inflatable purge bags work like a charm. Larger diameters? Consider our dual-seal systems for faster purging.
When installing dams, position your primary dam 3-6" from the weld joint, and the secondary dam 3-6" from the opposite side. Make sure those dams are seated firmly against the pipe walls – a loose dam means wasted gas and time.
For your gas connections, argon is heavier than air, so connect your inlet to the bottom port and put your exhaust at the top. Install your oxygen sensor near the exhaust port and verify all connections are secure.
When you start the purge, begin gas flow at 5-7 L/min and keep an eye on that oxygen level. Wait until your monitor shows less than 100 ppm (or whatever level your job requires), then reduce to a maintenance flow of 2-3 L/min.
Now you're ready to weld! Start with your root pass while maintaining the purge, and keep monitoring those oxygen levels throughout. Maintain reduced flow until the weld cools.
When you're done, deflate those dams carefully and extract them without scratching the pipe interior. Then inspect your weld – it should look clean and bright.
With our Tentacle Tools purge systems, we regularly achieve purge times under 2 minutes on 8" pipe to reach below 0.01% oxygen – that's lightning fast compared to makeshift methods.
Sheet metal and component purging requires different tactics than pipe purging, but the core principles stay the same.
For sheet metal, the backing tape method is a game-changer. Apply aluminum or fiberglass backing tape along the joint backside to channel and concentrate purge gas exactly where it's needed. This approach can cut your gas consumption by up to 90% compared to flooding the entire area. It works beautifully for both butt and corner joints.
Another approach is using a trailing shield attached to your torch. This provides extended coverage as you move along the joint and is perfect for long, straight seams. Our Tentacle Tools trailing shields are designed with the perfect balance of coverage and weight – because nobody wants a heavy attachment dragging on their torch all day.
For component purging, flexible enclosures work like transparent glove-box style chambers. They allow you to see what you're doing while maintaining that inert atmosphere. Multiple glove ports let you manipulate components, and our larger models can accommodate 2-4 operators working simultaneously.
Rigid chambers are great for production environments. These prefabricated boxes create repeatable conditions for consistent welds. They often include cooling systems for continuous operation and are ideal for small components in aerospace and medical industries.
For larger components where full chambers aren't practical, creating an argon blanket can work wonders. Layer argon (which is heavier than air) from the bottom up, use barriers to contain the gas around your work area, and monitor at multiple points to ensure complete coverage.
Whatever chamber setup you choose, remember these key practices: perform a pre-purge cycle to fully displace oxygen, use gas-tight entry systems, maintain positive pressure inside the chamber, ensure continued coverage during cooling, and monitor oxygen at multiple points for large chambers.
At Tentacle Tools, we've designed our sheet metal purging accessories to work seamlessly with standard welding equipment. We know you don't have time to reinvent your setup for every job – our gear integrates with what you already have, making proper weld purging accessible to every American tradesman.
Let's talk about the serious side of weld purging - because getting a great weld doesn't matter if you're not around to see it.
I've been in some tight spots during my welding career, and I can tell you that purge gases demand your respect. Argon, helium, and nitrogen might keep your welds pretty, but they can turn deadly in confined spaces faster than you can say "I can't breathe."
The scary truth is these gases are perfect assassins - colorless, odorless, and they don't irritate your lungs to warn you. You simply start feeling confused, maybe a bit dizzy, and then lights out. According to OSHA statistics, workers lose consciousness in under a minute in pure inert gas environments, with permanent brain damage following in just three minutes.
What's particularly heartbreaking is how many fatalities happen when a buddy rushes in to help a fallen coworker, only to become the second victim. No weld is worth that risk.
When working with weld purge gases, always:
Treat all purging like confined space work - This means proper permits, ventilation, and having a trained standby person who stays outside the space. Your oxygen monitor for breathing air should be separate from your purge monitor - they serve different purposes.
Respect your gas cylinders - I've seen unsecured cylinders become rockets when knocked over. Keep them chained up, use the right regulators, and always transport them with caps on. Those tanks are under serious pressure.
Wear appropriate PPE - Beyond your usual welding gear, consider personal gas monitors that alert you before oxygen levels drop to dangerous levels. These little devices have saved lives.
How do you know your weld purge is actually working? You've got several ways to check:
Your primary verification tool is a calibrated oxygen analyzer. These devices give you precise readings of oxygen content in your purge area. For critical applications, I recommend using color-change indicators as a backup - they're inexpensive insurance.
Visual inspection is your next line of defense. A properly purged stainless steel weld should show minimal discoloration - perhaps a light straw color at most. When you start seeing blues, purples, and blacks, you know oxygen crashed your party.
At Tentacle Tools, we believe in documentation. Keep records of your oxygen levels, gas types, flow rates, and purge times. Your quality control department will thank you, and it's your best defense if questions arise later.
Even the best setups can go sideways. When your weld purge isn't cooperating, here's how to get back on track:
High oxygen readings often mean you've got leaks in your setup. Check all connections with leak detector (soapy water works in a pinch), inspect your dams for proper seating, and make sure you've allowed enough purge time for the volume you're working with.
Weld discoloration despite good readings? Your gas might be contaminated, or perhaps you stopped purging too soon. Hot metal continues to oxidize during cooling - maintain your purge until temperatures drop below the oxidation point.
Porosity in your weld typically points to moisture in your purge zone or contaminated materials. Thoroughly dry components before purging and ensure your prep work is spotless.
Inconsistent monitor readings usually indicate sensor placement issues or calibration drift. Reposition your sensor closer to the weld area and verify your equipment is properly calibrated.
When your weld purge isn't working as expected, don't panic. Follow this troubleshooting path:
First, check for oxygen spikes on your monitor. Sudden increases usually mean you've sprung a leak somewhere. Trace all connections with leak detection solution and look for pinched or damaged hoses.
Next, inspect your dam placement. Dams that shift during purging are incredibly common. Make sure they're properly inflated and sized correctly for your pipe. A dam that's too small will never seal properly.
Take a hard look at your gas flow. Too high, and you create turbulence that actually pulls in atmospheric oxygen. Too low, and you can't displace the existing oxygen. For most applications, 5-7 L/min hits the sweet spot.
Don't overlook moisture contamination. Condensation inside pipes releases oxygen during heating. In humid environments, consider a longer pre-purge with dry gas to remove moisture before welding.
Finally, verify your sensor is working correctly. Briefly expose it to atmosphere (it should read around 21%), check the battery level, and confirm it's been calibrated recently.
I've worked in some spaces tight enough to make a sardine claustrophobic, and let me tell you - confined space weld purging demands serious respect.
Before you even think about crawling in, get your confined space entry permit in order. Identify all potential hazards, not just the purge gases. Develop a clear emergency retrieval plan and make sure everyone knows their role - entrant, attendant, and supervisor.
Test the atmosphere thoroughly. For breathing, oxygen must be between 19.5-23.5%. Also test for flammable and toxic gases, and document everything.
Set up proper ventilation with forced air and verify the flow patterns. This ventilation stays running the entire time - no exceptions.
Establish clear communication methods between the worker inside and the attendant outside. This might be visual, verbal, or radio contact, but it needs to be consistent and include emergency signals.
Your atmospheric monitoring should be continuous and separate from your purge monitoring. Make sure you have alarms for oxygen depletion that will alert you before levels become dangerous.
Always have trained standby personnel present. This person never leaves their post and is equipped with rescue equipment. The golden rule: they never enter the space during an emergency without backup.
Position all gas cylinders outside the confined space and use extended hoses to reach your work area. At Tentacle Tools, we've designed our purge kits to minimize setup time inside confined spaces - because the less time you spend in there, the safer you are.
Remember: No weld is worth risking your life. Always follow proper confined space procedures, even if it takes longer to finish the job. Your family wants you home in one piece.
The world of weld purging isn't standing still – it's evolving faster than ever before. As someone who's spent decades in the trenches of industrial welding, I've watched these innovations transform our work in amazing ways.
Remember when purging a pipe used to take forever? Those days are gone. Today's rapid purge systems with dual-seal pull-through designs can purge an 8" pipe to below 0.01% oxygen in under 2 minutes – that's lightning fast compared to what we used to do. These systems slash gas consumption by up to 75%, saving you both time and money.
Working with high-temperature materials used to be a nightmare for purging. Now, we've got heat-resistant equipment with high-grade silicone that handles temperatures up to 320°C (608°F). This is a game-changer for preheating operations and those tricky high-temperature alloys that need PWHT.
The days of wondering "is my purge good enough?" are over too. Smart monitoring systems now connect via Bluetooth to log data automatically, sending real-time alerts straight to your phone. Some even generate QR codes for documentation and store everything in the cloud – making quality assurance a whole lot easier.
At Tentacle Tools, we're constantly improving our American-made purge equipment based on what real welders tell us they need. We focus on making systems that are not just effective but truly user-friendly while maximizing gas efficiency.
Let's talk dollars and cents – because that's what matters when you're running a business or managing a project.
The math on weld purging equipment is simple: invest a little now to save a lot later. A single failed 16" pipe weld can set you back $3,000-$5,000 in repairs. When you consider that quality purging equipment dramatically reduces these failures, the equipment pays for itself quickly.
Beyond avoiding failures, there are substantial ongoing savings. Advanced systems use 60-75% less gas than improvised methods. Your labor costs drop with faster purge times. And the systems you're welding last longer when they're properly purged.
Here's a real-world example: On a typical pipeline project with 100 welds on 8" stainless pipe, traditional purging methods might cost you around $15,000 in gas and 200 hours of purge time. Switch to advanced purge systems, and those numbers drop to about $4,000 and 50 hours. With an initial investment of around $3,000 in quality equipment, you're looking at $8,000 in savings plus 150 hours of labor recovered – on just one project!
The future of weld purging looks mighty interesting. We're heading toward systems that think almost as much as we do.
Integrated welding-purging systems are becoming more common, with orbital welders that have built-in purge control. These smart systems adjust purge parameters automatically based on the material and thickness you're working with.
AI is making its way into our world too. New systems are learning the optimal purge parameters for specific applications, and some can even predict when your equipment needs maintenance before it fails.
For those concerned about environmental impact, new gas recapture technologies and micro-purging systems are reducing waste. These focused approaches use exactly what's needed and nothing more.
Documentation is getting a major upgrade as well. The latest systems generate purge certificates automatically and integrate with digital quality management systems. Some critical applications are even using blockchain verification to ensure records can't be tampered with.
At Tentacle Tools, we're proud to be driving American innovation in welding technology. We develop tools that help hardworking tradesmen work more efficiently while maintaining the quality standards that built this country.
When you implement proper weld purging, the benefits hit both your wallet and your reputation for quality.
On the financial side, you'll see immediate improvements. Scrap reduction happens naturally when welds rarely fail inspection. Your team avoids time-consuming rework since you get it right the first time. Projects finish faster with efficient purging systems. Your gas bills drop as modern systems use precisely what's needed. And perhaps most importantly, your welded systems resist corrosion longer, extending their operational life.
The quality improvements are just as impressive. You get consistent results that you can count on job after job. The mechanical properties of your welds stay strong without oxygen contamination. The welds look better too – clean and oxide-free with minimal finishing needed. You'll meet even the most stringent industry standards, and you'll have the documentation to prove you did everything right.
I remember working with a major oil and gas client who was pulling their hair out over a 15% rejection rate on stainless pipe welds. After switching to our Tentacle Tools purge systems and getting proper training, their rejection rate plummeted to less than 1%. That single change saved them approximately $250,000 on one project.
The most compelling reason to invest in quality purging often comes down to avoiding just one critical failure. In petrochemical facilities, a single failed weld can trigger shutdown costs exceeding $100,000 per hour. When you look at it that way, quality purge equipment isn't just an expense – it's one of the smartest investments you can make.
I get this question all the time on job sites, and the answer depends on what you're welding and how critical the application is.
For stainless steel, most general industrial applications require keeping oxygen below 100 ppm during your weld purge. But if you're working on pharmaceutical equipment or semiconductor components, you'll need to get down to 50 ppm or lower. Nuclear work? Even more stringent – 20 ppm is the maximum there.
Titanium is even more oxygen-sensitive. Standard titanium welding should stay below 50 ppm, but for aerospace or medical implants, you're looking at 20 ppm or less. Critical structural components might require 10 ppm or lower.
Zirconium is one of the most demanding – always keep it below 20 ppm, regardless of application.
These are maximum allowable levels – lower is always better for weld quality. After welding, the color tells the story:- No discoloration means excellent purging (likely below 20 ppm)- Straw color is acceptable for most applications (around 100 ppm)- Blue or purple? That's questionable quality (over 100 ppm)- Gray or black means unacceptable oxidation (over 500 ppm)
Our Tentacle Tools purge monitors are calibrated to give you accurate readings down to 10 ppm, so you can meet even the toughest specs with confidence.
Choosing the right purge gas isn't one-size-fits-all. Let me break down what works best for different situations.
Argon is my go-to for most weld purge applications, especially with stainless steel, titanium, and zirconium. It's heavier than air, so it naturally flows downward and displaces oxygen effectively. While it costs more than nitrogen, it's widely available and less expensive than helium. For most pipeline work, high-purity argon (99.995% or higher) is worth the slight premium over industrial grades.
Helium shines when you're working with thick materials or need high heat input. Its superior heat transfer properties help with heat dissipation, but it comes at a price – it's the most expensive option. Being lighter than air, helium flows upward and escapes quickly, so your purge setup needs to account for this behavior.
Nitrogen is your budget-friendly option, perfect for carbon steel and some stainless grades. It's readily available and economical, but don't use it with reactive metals like titanium – it forms nitrides that compromise weld quality. Since nitrogen has similar density to air, it doesn't naturally displace oxygen as effectively as argon.
Some welders I know swear by argon/helium mixes for thick stainless steel or high-speed automated welding. These blends give you argon's density advantages with helium's heat transfer benefits, at a cost somewhere between the two pure gases.
Nothing's worse than thinking your weld purge is good to go, only to find your monitor was giving false readings. Here's how I make sure my equipment is telling the truth.
For a quick field check, I expose the sensor to fresh air – it should read approximately 20.9% oxygen (209,000 ppm). If you have a certified test gas handy, use it to verify a second point on the scale. The monitor should respond to changes within seconds – if it's sluggish, something's wrong.
Formal calibration should happen every 6-12 months. Use certified calibration gases appropriate for your monitor's range and follow the manufacturer's procedure exactly. Always document the calibration with date and test gas information, and slap a calibration sticker on the device so everyone knows it's good to go.
Watch for warning signs that your monitor needs attention: slow response times, jumpy readings, failure to reach zero in pure inert gas, battery issues, or readings that don't match what you're seeing in weld quality.
At Tentacle Tools, we don't just sell you equipment and wish you luck. We provide calibration services for all our purge monitors and even offer loaner equipment during calibration so you're never left high and dry.
Remember – your monitor is only as good as its calibration. When you're working on critical welds that have to pass inspection the first time, don't gamble with questionable readings. That small investment in proper calibration pays for itself many times over in avoided rework and rejected welds.
When it comes down to it, weld purging isn't just another step in the welding process – it's what separates professional-grade welds from the ones that fail when it matters most. Whether you're working with stainless steel in a pipeline or titanium in an aerospace application, proper purging is the foundation of quality that lasts decades.
I've seen how the right purge techniques can transform a welder's results. As a second-generation welder myself, I've made every mistake in the book and learned from each one. That's why at Tentacle Tools, we've poured our real-world experience into designing weld purge equipment that actually works the way American tradesmen need it to.
The truth is, investing in quality purge equipment isn't an expense – it's one of the smartest financial decisions you can make in this trade. Just one failed weld can cost thousands in rework, not to mention the hit to your reputation. Our customers consistently tell us that their Tentacle Tools purge systems paid for themselves on the very first job.
Beyond the equipment, it's the knowledge that matters. That's why we've shared these techniques – from the basic principles to advanced troubleshooting. We want every American welder to have access to the information they need to do world-class work, regardless of whether they use our tools or not.
The welding trade has built this country, and at Tentacle Tools, we're proud to support the men and women who keep that tradition alive. Our American-made equipment embodies the same grit and determination that defines the welders who use it. We don't just talk about American craftsmanship – we live it every day in our manufacturing.
If you're looking to lift your welding career, don't forget to check out our job board. We connect skilled tradespeople with opportunities across the country because we believe in supporting the entire welding community.
Remember: Anyone can lay down a bead, but it takes knowledge, proper equipment, and attention to detail to create welds that stand the test of time. Master weld purging, and you'll separate yourself from the pack.
Explore insights, tips, and trends in tech and productivity!
