A weld fixture is a specialized tool that securely holds components in position during welding to ensure accuracy, consistency, and quality. If you're looking to understand what weld fixtures are and why they matter, here's what you need to know:
In the welding world, precision isn't just nice to have—it's essential. When components shift during welding, even by fractions of an inch, the result can be costly rework, wasted materials, and compromised structural integrity. Weld fixtures solve this problem by holding parts exactly where they need to be.
As one fabricator put it: "Welding fixtures are a necessary evil. But once you've used a good one, you'll never go back to free-handing it."
I'm William "Stick" Mank, a second-generation welder with over 20 years in the oil and gas industry who has designed and used countless weld fixtures throughout my career. My experience has taught me that the right fixture can be the difference between a perfect weld and a costly mistake.
Ever grabbed the wrong tool for a job and thought, "Close enough"? When it comes to welding, that mindset can cost you time, money, and quality. Let's clear up one common confusion right away: a weld fixture is not the same as a jig, though many folks use the terms interchangeably.
Think of it this way: a weld fixture holds your workpiece still while you move around it with your welding equipment. It's like having an extra set of hands that never shake, never tire, and always hold things exactly where they need to be. A jig, on the other hand, guides your welding tool itself, like a template for your hand.
| Feature | Weld Fixture | Welding Jig |
|---|---|---|
| Primary Function | Holds workpiece in fixed position | Guides the welding tool |
| Movement | Workpiece is stationary | Workpiece may move |
| Complexity | Generally more complex | Usually simpler |
| Cost | Typically higher investment | Often lower cost |
| Best For | Precision, repeatability, automation | Simple, one-off projects |
| Examples | Modular tables, positioners, rotators | Simple alignment tools, templates |
I've seen too many shops try to get by without proper fixturing, and it always catches up with them. Here's why weld fixtures matter so much:
First, they deliver accuracy that human hands simply can't match consistently. When you're working to tight tolerances, a good fixture is your best friend. They also ensure repeatability – whether you're making your second piece or your two-hundredth, each one comes out the same.
One of the biggest headaches in welding is dealing with distortion from heat. A solid weld fixture helps control this by holding parts firmly in place as they cool. And let's not forget safety – keeping your hands away from the hot zone is always a good idea.
Then there's the productivity boost. As a fabricator buddy of mine likes to say, "My fixture paid for itself in the first month just in the time I saved not having to re-position parts." Many shops report cutting production time in half when using modular fixturing systems, especially for complex jobs like railing fixtures. Want to learn more about choosing the right fixture for your specific needs? Check out How to Choose the Right Types of Welding Fixtures.

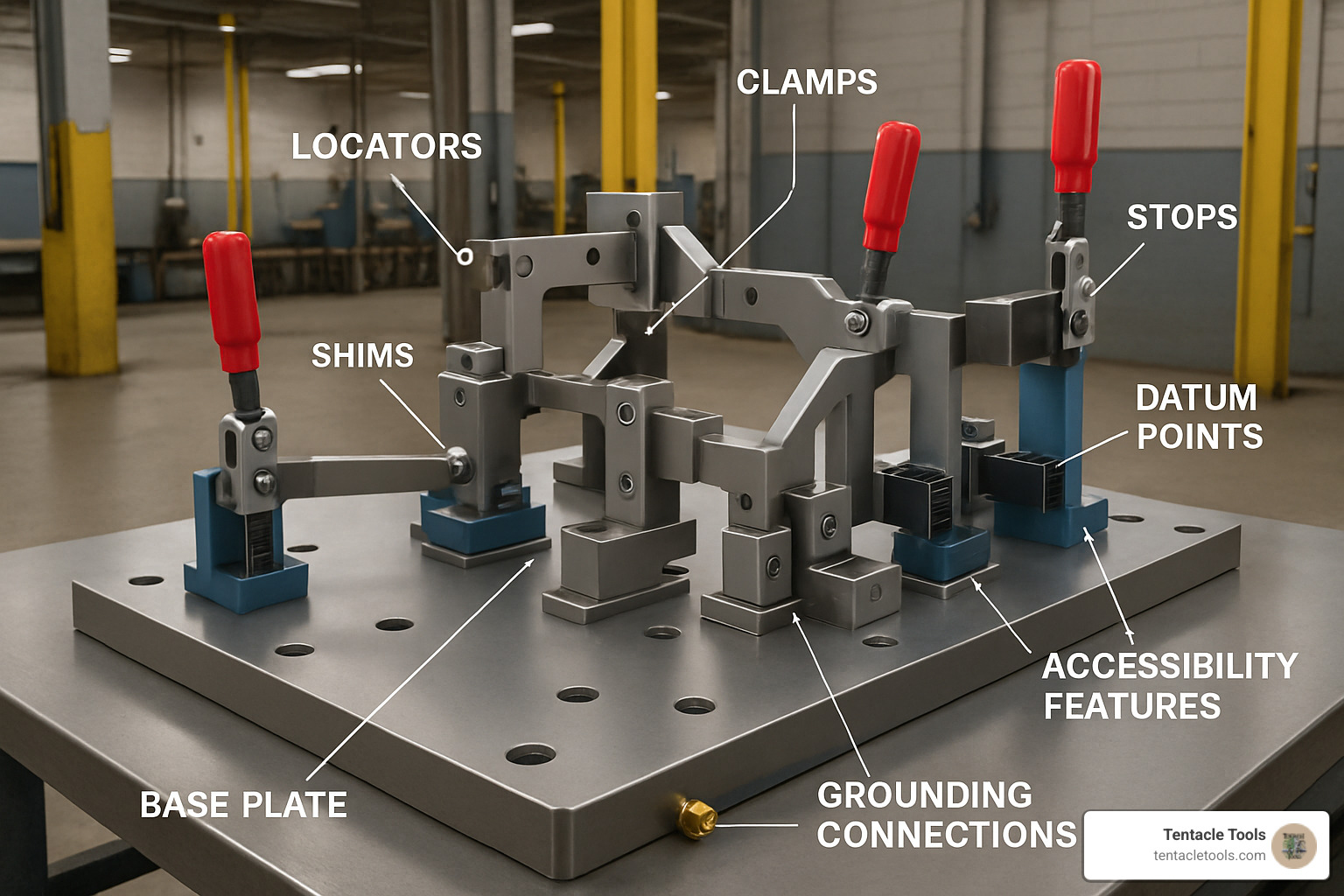

A good weld fixture is like a well-designed tool belt – everything has its place and purpose:
The base plate forms the foundation, typically a sturdy steel plate with a grid of holes for mounting components. Locators are the positioning elements that ensure your workpiece sits exactly where it should – these might be pins, stops, or V-blocks.
Clamps are what keep everything locked down tight during welding, while stops prevent movement in specific directions. For those fine adjustments that make all the difference, shims come into play.
Every fixture needs datum points – these are your reference points for measurements and positioning. Proper grounding ensures your welding current flows correctly, and thoughtful accessibility features make sure you can actually reach all the joints you need to weld.
Last but not least, heat sinks help draw away excess heat to minimize warping and distortion.
Your production needs and budget will determine which type of weld fixture makes the most sense for your shop:
Manual fixtures are the workhorses of small shops. They use hand-operated toggle clamps that give you mechanical advantage – meaning you don't need superhuman strength to secure heavy parts. They're perfect for low-volume work, prototyping, or simpler projects. Expect to invest around $15,000-$25,000 for a quality setup.
Moving up the ladder, semi-automatic fixtures blend the best of both worlds. They might use pneumatic or hydraulic clamping that you activate with the push of a button, and often include sensors to verify everything's positioned correctly. One shop owner I know calls these "the Goldilocks solution – not too simple, not too complex, just right." They typically run $25,000-$40,000 and shine in medium-volume production environments.
At the top end, automatic fixtures operate with minimal human input. They're fully integrated with robotic welding systems, use computer-controlled clamping sequences, and include comprehensive sensor arrays to verify part presence and position. These are the champions of high-volume, complex production environments, with price tags starting around $40,000 and climbing well beyond $50,000.
The beauty of automatic systems is how they talk to each other – the fixture receives signals directly from the robot controller, creating a synchronized dance of clamping and welding that maximizes efficiency and throughput.
Whether you're just starting out or running a high-volume shop, the right weld fixture isn't just an expense – it's an investment in quality, safety, and productivity that pays dividends with every weld.
Let's talk shop about the different kinds of weld fixtures you might encounter in the wild. Each type has its sweet spot where it really shines, kind of like how every tool in your box has that perfect job it was born to do.
Plate Fixtures are your basic workhorses – flat, table-like setups with a grid of holes for mounting whatever clamps and stops you need. These are perfect when you're working with sheet metal, flat components, or just need a solid foundation for general welding tasks. Nothing fancy, just reliable.
When you need to hold parts at specific angles (especially those perfect 90-degree corners), Angle Fixtures are your best friend. They're the unsung heroes behind clean corner joints, T-joints, and frame assembly. As my old mentor used to say, "A square frame ain't square without a square fixture."
Modular Welding Tables are the Swiss Army knives of the fixture world. These versatile systems let you reconfigure components for different jobs, making them perfect for shops that handle a variety of projects. If you're running a high-mix, low-volume operation or developing prototypes, these tables are worth their weight in gold.
For those round components that need to be welded from multiple angles, Positioners rotate your workpiece to the optimal position. They're not just about convenience – they're about quality and welder comfort. Your back will thank you when you're not contorting yourself to reach that awkward spot on a cylindrical part.
Pipe Fixtures are exactly what they sound like – specialized holders designed specifically for pipe welding. Whether you're working on pipelines, pressure vessels, or running qualification tests in positions like 2G, 5G, and 6G, these fixtures keep everything aligned just right.
When you're welding stainless steel or exotic alloys, Purge Blocks take pipe fixtures to the next level. They not only hold your pipes but also manage the back-purge gas for those clean root passes that aerospace and high-purity systems demand. Trust me, when you need a perfect, contamination-free weld, these are worth every penny.
For the architectural metalworkers out there, Railing Fixtures make fabricating handrails and safety railings a breeze. They ensure consistent dimensions and clean welds – turning what could be a frustrating alignment challenge into a smooth, repeatable process.
And let's not forget Test Fixtures – the guardians of quality in our industry. Used for welder qualification and procedure testing, these fixtures ensure that both the welder and the process meet the required standards. They're essential tools for certification, quality assurance, and training programs.
Modular welding tables have been a game-changer in fabrication shops. I remember the first time I used one – it was like going from a flip phone to a smartphone. These systems typically feature a precision-machined surface with a grid of holes at exact intervals, allowing you to mount interchangeable components and quickly reconfigure for different projects.
The benefits are real and substantial. The precise hole grid ensures perfect right angles and parallel alignments, taking the guesswork out of squaring. Many systems offer height adjustment to save your back during long welding sessions. Studies show these systems can cut production time by up to 50% – that's not just saving time, that's making money.
The beauty of these tables is their flexibility. Instead of building and storing complete fixtures for every job, you can use the same table with different component configurations. High-quality modular tables made from plasma-nitrided tool steel hardened up to 66 HRC provide exceptional durability and precision, making them the foundation for accurate metalwork across industries.
When robots enter the picture, weld fixtures become even more critical. In automated environments, your fixture needs to position parts within the robot's work envelope with incredible precision. We're talking repeatability requirements measured in fractions of a millimeter – because robots don't adjust on the fly like human welders do.
Many automated cells use what we call "two-step fixturing," with separate stations for tack welding and final welding. Advanced fixtures often incorporate X-Y grid systems of interlocking blades to cradle complex parts with precision that would make a surgeon proud.
The ROI on these sophisticated fixtures can be impressive. Dewys Manufacturing saved over $6,700 in just three months using advanced fixture design software, averaging $500 saved per fixture in material, labor, and programming time. That's real money back in your pocket.
These automated fixtures often include pneumatic clamping systems that respond to robot signals, sensors that verify part presence and position, quick-change mechanisms for rapid fixture swapping, and modular designs that accommodate product variations. It's like having a silent partner who never gets tired, never loses focus, and consistently delivers perfect positioning.
For more insights on selecting the right fixture for your specific needs, check out our guide on How to Choose the Right Types of Welding Fixtures. And if you're interested in the science behind ergonomic fixture design, there's some fascinating scientific research on ergonomic fixtures worth exploring.
Creating an effective weld fixture isn't just about welding some metal together and hoping for the best. It's more like crafting a reliable partner that'll help you produce quality work day after day.
When I design fixtures, I always start with the basics: Can the welder actually reach all the joints? Nothing's more frustrating than a beautiful fixture that blocks half your welds. You've also got to think about heat—welding generates serious temperatures that can warp both your workpiece and your fixture. Choosing the right materials matters too. Sometimes standard steel works fine, but other times you need something that can take the heat without flinching.
Most shops today start with CAD models, which lets you catch problems before cutting metal. As my old mentor used to say, "Mistakes on the computer are free. Mistakes in steel cost money."
The build process follows a natural progression. First, you plan out your critical features and decide where parts need to be held. Then comes design work—either detailed drawings or 3D models that show every component. Material selection comes next, followed by the actual fabrication work. Always finish with thorough testing before putting any fixture into production. Trust me, that extra day of testing can save weeks of headaches.
Cost-wise, expect to invest some serious cash. Simple manual fixtures typically start around $15,000, while complex automated systems can easily hit $50,000. That might sound steep, but when you spread that cost across thousands of parts, the per-piece savings make the math work out.
Should you build in-house or outsource? If you've got the expertise and time, building in-house gives you control and flexibility. But when designs get complex or your team is already stretched thin, outsourcing makes sense. There's no shame in bringing in specialists—that's why they exist.
Once your weld fixture is up and running, maintenance becomes your best friend. Clean it after every use, inspect it regularly for wear, keep moving parts lubricated, and calibrate it periodically. Document everything you do—your future self will thank you when troubleshooting issues six months down the road. As one crusty old fabricator told me on my first day, "A well-maintained fixture will outlast the product it was designed to build."
The digital revolution hasn't skipped the welding world. Modern weld fixture design now leans heavily on specialized software that takes much of the guesswork out of the process.
These programs can automatically generate interlocking blade grids that perfectly cradle your part's contours. They'll import your existing CAD files—whether they're IGES, STEP, SolidWorks, or CATIA—and transform them into practical fixture designs. The time savings are impressive, with many shops reporting they can design fixtures 75% faster than traditional methods.
Some providers have even started offering what they call "Fixture-as-a-Service" or FaaS. Send them your part models, and they'll design complete fixtures ready for fabrication. It's like having an expert fixture designer on call without the full-time salary.
The workflow is straightforward: import your part model, let the software work its magic generating fixture components, export those designs to your fabrication equipment, then assemble the pieces. One shop manager I know put it perfectly: "We finished 32 fixtures in two weeks using the software, where previously two weeks would yield just one smaller fixture."
When it comes to weld fixture costs, several factors come into play. Understanding these can help you budget properly and avoid sticker shock.
Material choices significantly impact your bottom line. Thicker materials for handling larger parts or managing intense heat will cost more. Standard steel is usually the most economical option, but specialty alloys for high-temperature applications can quickly multiply your material costs. And naturally, more complex fixtures with dozens of components will cost more than simpler designs.
Design complexity is another major factor. More clamping points mean more components and higher costs. If you need a fixture that can handle multiple part variations, expect to pay more for that flexibility. And when your welds are in hard-to-reach places, designing for proper access adds challenges and costs.
Automation elements can dramatically affect your budget too. Manual clamps are the most affordable but require an operator to secure each part. Pneumatic systems cost more initially but speed up operation. Hydraulic systems provide tremendous clamping force but at premium prices. Add sensors and controls for automation, and your costs climb further—though the labor savings often justify the investment.
Production volume plays a crucial role in your cost calculations. For one-off or low-volume production, simpler fixtures make economic sense despite higher per-part costs. For high-volume work, sophisticated fixtures with higher upfront costs but lower per-part expenses usually win out.
Don't forget about shipping and handling—large fixtures might require special transportation arrangements. This is where modular designs shine, as they can be shipped in smaller components and assembled on-site.
At Tentacle Tools, we've found most small to medium shops benefit from modular systems that balance initial cost with flexibility. Our American-made fixtures are designed by people who actually weld for a living—we understand the real-world challenges you face because we've faced them too.
When you see weld fixtures in action, that's when their true value really shines through. It's one thing to talk about their benefits, but seeing the numbers and results tells the real story.
Modular welding tables have changed the game for fabricators of all sizes. I've watched small shops transform their operations by investing in these systems. What makes them so valuable? For starters, you can reconfigure them in minutes instead of hours – perfect when you're juggling different projects throughout the day. As your business grows, you simply add more components rather than starting from scratch. The standardized hole patterns ensure everything fits together perfectly, which means your investment keeps paying off even as your product line evolves.
The ergonomic benefits shouldn't be overlooked either. Height-adjustable tables save welders' backs, which means less fatigue and fewer injuries. Positioning fixtures that rotate parts put the weld right where it needs to be – at the perfect height and angle. This might seem like a small thing, but when your team isn't constantly manhandling heavy components, productivity goes up and injuries go down.
When it comes to automation, properly designed weld fixtures are absolute workhorses. They present parts to robots in exactly the same position every time – something robots absolutely require for consistent results. Quick-change systems mean your robot spends more time welding and less time waiting. Adding sensors to verify part placement before welding begins eliminates the headache of scrapped parts due to misalignment.
The real-world results speak for themselves. Dewys Manufacturing saved over $6,700 in just three months after implementing advanced fixture systems. Many shops report up to 75% time savings in fixture design and implementation. For certain applications like railing fabrication, modular fixturing systems can slash production time in half. One particularly resourceful manufacturer told me they cut overnight laser jigs and had them in production the next morning – saving two full days of lead time.
When calculating your return on investment, consider these five factors: your initial fixture investment, labor savings from reduced setup time, material savings from reduced scrap, quality improvements that eliminate rework, and increased throughput capacity. As one shop owner put it to me recently: "Our modular fixturing system paid for itself in the first six months. Now it's just making us money."
At Tentacle Tools, we've watched American fabricators completely transform their operations with properly designed fixtures. Our oil and gas industry customers particularly value fixtures that deliver the high-precision welds required for critical pipeline applications. There's something deeply satisfying about seeing American craftsmanship liftd through smart tooling – it's what drives us to keep innovating.
People often mix these terms up, but there's a simple way to remember the difference. A weld fixture holds your workpiece still while you move around it with your welding tool. Think of it as the steady hand that never gets tired. A jig, on the other hand, guides your welding tool while the workpiece might move.
It's like the difference between a vise and a template. Your weld fixture is the heavy-duty vise gripping your work firmly in place, while a jig is more like a template helping you trace the right path. Fixtures tend to be more substantial pieces of equipment designed to withstand heat and pressure, while jigs are typically simpler guides.
As one old-timer in our shop likes to say, "A fixture holds the work, a jig holds your hand."
Sometimes it makes sense to call in the experts for your weld fixture needs. Consider outsourcing when:
Your team is great at welding but doesn't specialize in fixture design. There's no shame in that – it's a specific skill set.
You're dealing with complex geometries that would give even experienced designers a headache. Those tricky angles and curves often benefit from specialized design knowledge.
Your shop is already running at full capacity. When everyone's already working overtime, adding fixture design to the pile might not be realistic.
You need something yesterday. Outside firms focused on fixtures can often turn designs around faster than you can in-house.
The project requires specialized engineering that goes beyond your team's expertise. Some applications have unique requirements that benefit from specialized knowledge.
Many of our customers at Tentacle Tools find that a mixed approach works best – outsource the complex, specialized fixtures while handling the simpler ones in-house. This gives you the best of both worlds: expert help when you need it and cost savings when you don't.
If your shop runs a variety of different jobs rather than long production runs, modular fixturing systems are your best friend. They're the Swiss Army knife of the welding world.
With modular systems, you can quickly reconfigure your setup between jobs without reinventing the wheel each time. Instead of building 20 different fixtures for 20 different parts, you can use one table and a set of components that rearrange like building blocks.
The benefits are substantial for high-mix shops:
Your floor space stays open because you're not storing dozens of dedicated fixtures. One modular system replaces a warehouse full of single-purpose fixtures.
When a customer changes their design (and they always do), you can adjust your fixture in minutes rather than starting from scratch.
Your per-job fixturing cost drops dramatically since you're reusing components across multiple projects.
The numbers back this up too. Studies show that shops using modular fixturing systems can cut production time by up to 50% on certain jobs. When you're doing short runs where setup time eats a big chunk of your total job time, that's money in the bank.
As one of our customers who runs a custom fabrication shop put it: "Before our modular system, we spent more time making fixtures than making parts. Now we're actually profitable on those small jobs we used to avoid."
The right weld fixture isn't just another tool in your shop—it's a game-changer that transforms how you work. From boosting quality and consistency to enhancing safety and productivity, proper fixturing makes a difference you can see in every weld.
I've watched small fabrication shops completely reinvent their workflow after investing in quality fixtures. The payoff comes quickly: less rework, faster production times, and welds that not only look better but perform better too. As one shop owner told me, "My only regret is not doing this years ago."
At Tentacle Tools, we get it. We've been in your boots. Founded by a certified engineer who partners with a veteran welder, we design our specialty welding tools with the everyday tradesman in mind. Our American-made products stand up to the toughest demands of oil and gas, pipeline welding, and other industrial applications where "good enough" just isn't.
We believe passionately that the right tools make all the difference. That's why we don't just sell products—we support the entire skilled trades community. Our dedicated job board connects welders, fitters, and tradespeople with employment opportunities across America, because we're committed to the people behind the tools.
Weld fixtures aren't expenses—they're investments that pay dividends in quality, efficiency, and craftsmanship. As we like to say around the shop: "Hold it right, weld it tight."
